TournamentManagement

Live Stream

Follow these steps to broadcast your tournament live with real-time score overlays using KumiteTechnology.

Requirements:

  • Device: iPhone (iOS 16+) and a stable tripod.
  • Connection: Good internet and power suppply.
  • App: KumiteTechnology Live app (from App Store).

1. Go to Live Stream

Open your tournament admin page and select Live Stream from the navigation menu.

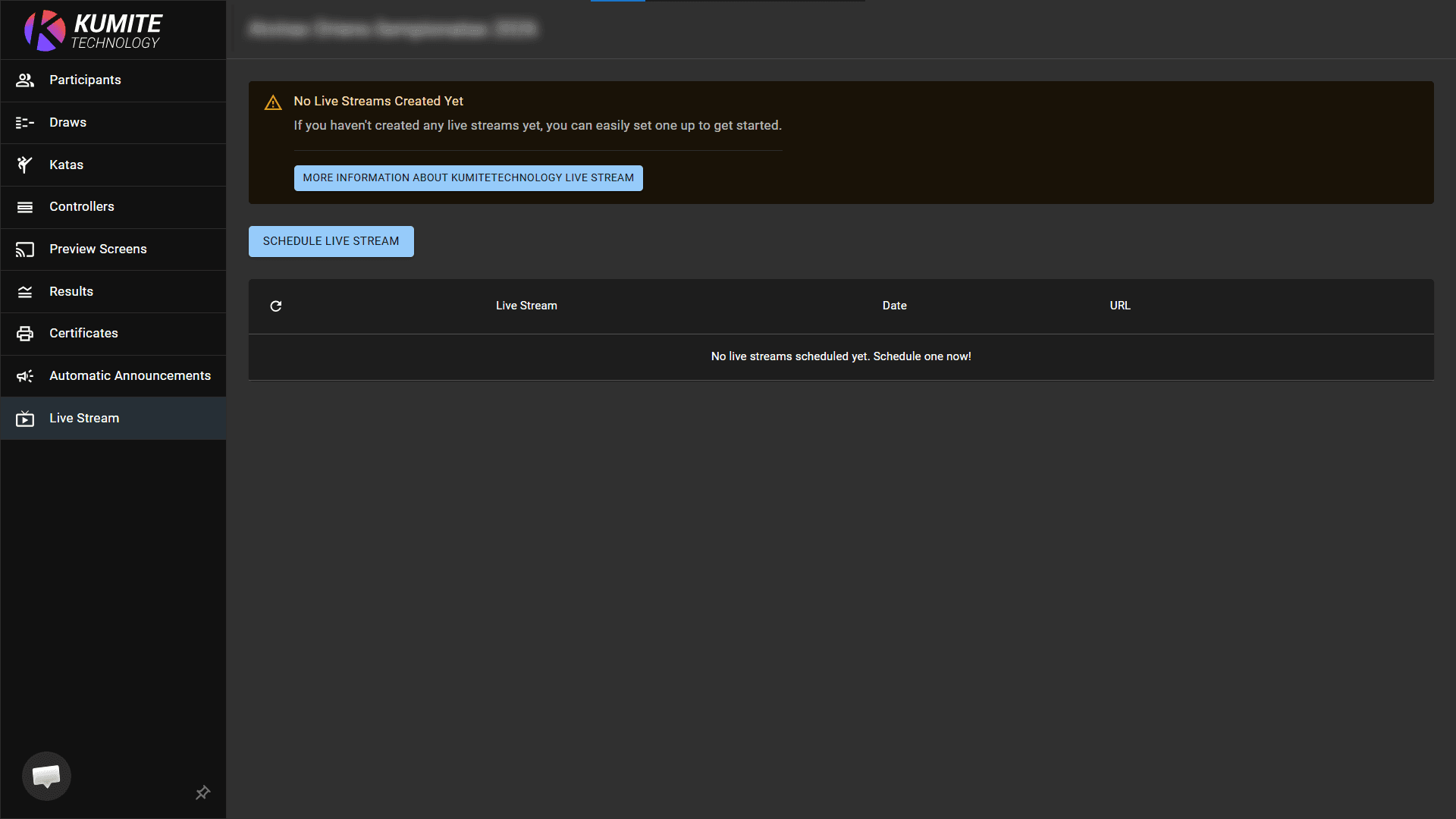

Set Up Live Stream

2. Schedule Live Stream

Click Schedule Live Stream, enter the stream name, date and description. Click Save.

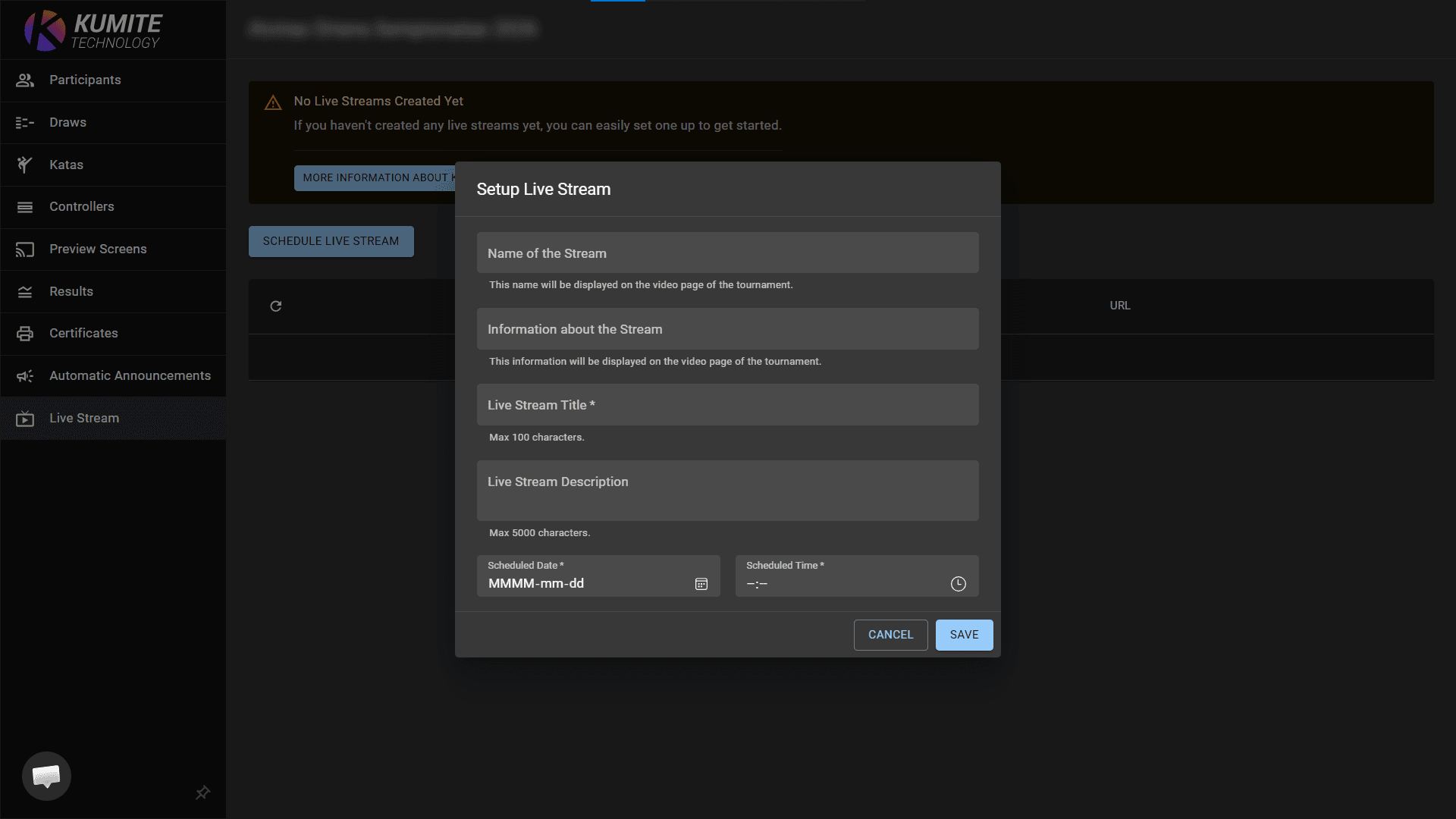

Live Stream Schedule Form

3. Assign Overlays

In the right side of Scheduled Live Streams list click Controller and select the controller you want to broadcast. The app will now automatically sync the live data from that mat wth the video feed.

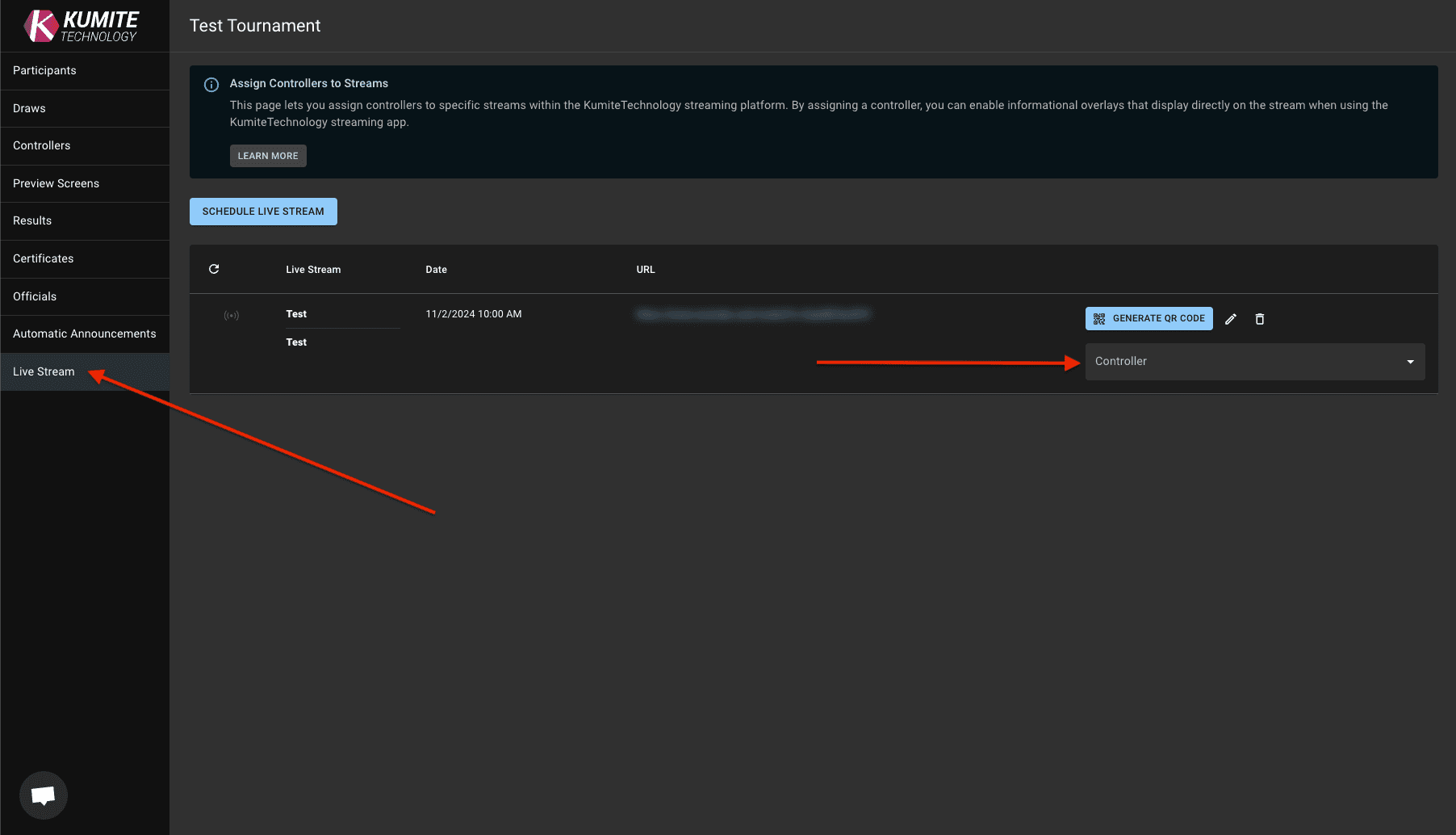

Live Stream Controller Assignment

4. Connect and Go Live

Launch the KumiteTechnology app on your iPhone. Tap Scan and point your camera at the generated QR Code on your screen. Adjust resolution and frame rate, then click Continue. Position your phone on the tripod and tap Start Streaming.

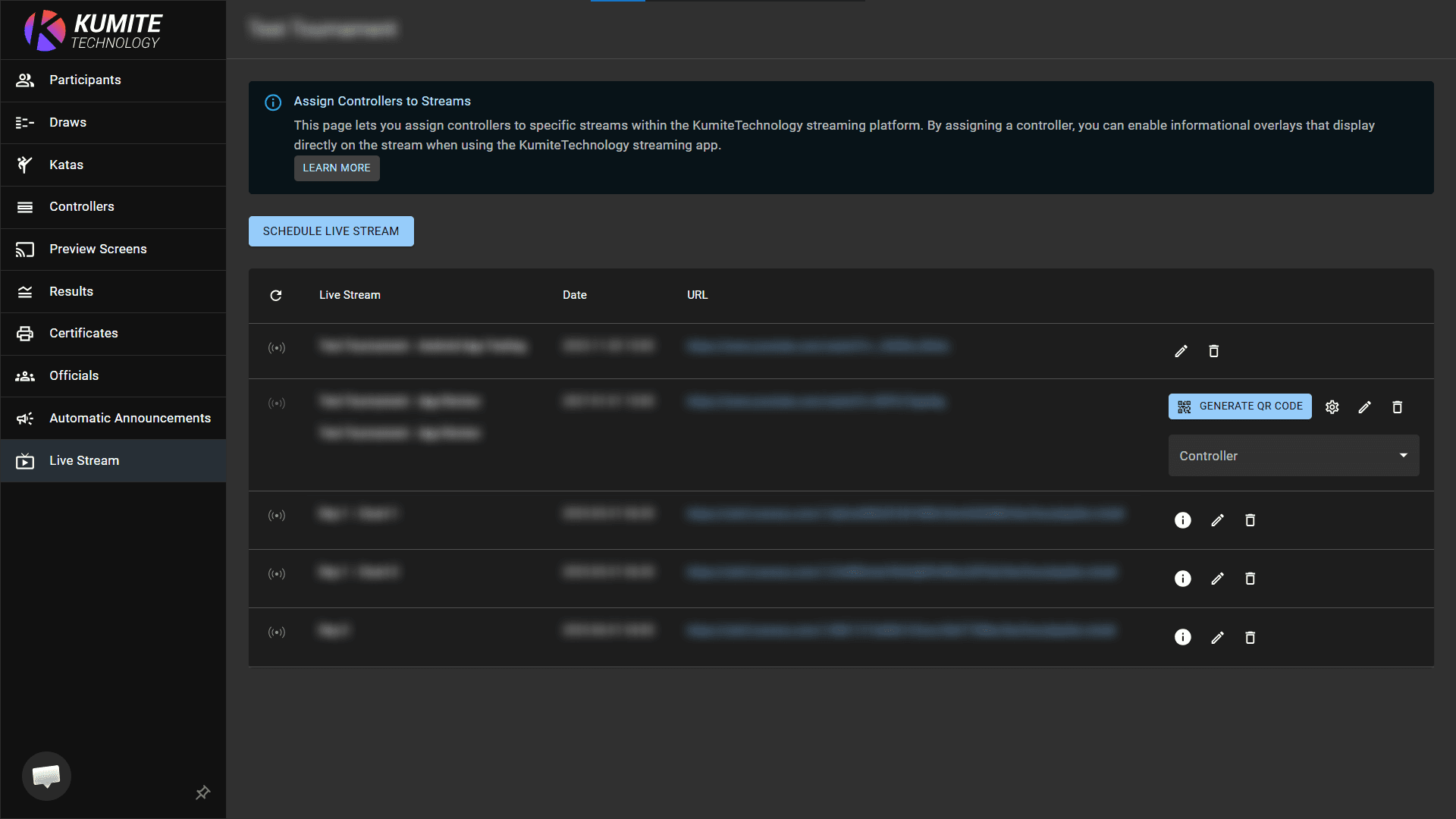

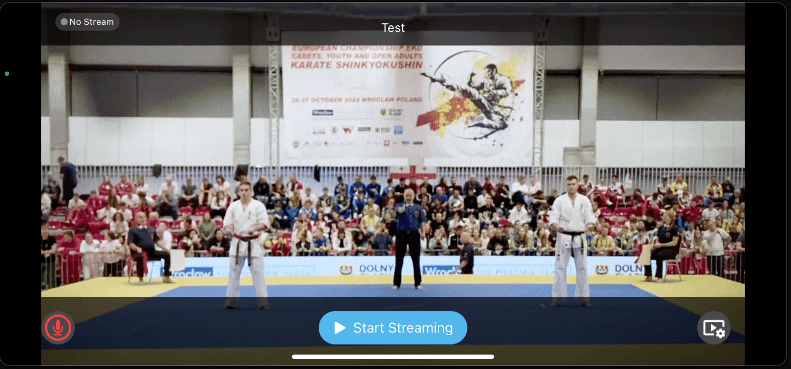

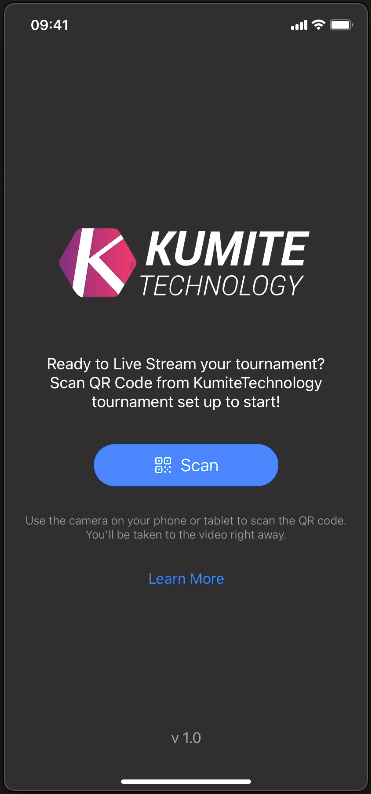

Streaming App Generate QR Code Live Stream QR Code Stream Settings Stream Preview
